F - Body Parts '93 - '97

Updated 12/23/01                                                                                                                 F-Body     Corvette

LT1 - Physical Dimensions                                          Custom Wiring Kits

        27 1/2"  Long from front of water pump to bell housing flange

24 3/4"  Wide measured to the outside of the stock exhaust manifolds

24"        Tall from bottom of oil pan to top of throttle body
        16"      from bottom of oil pan to bottom of exhaust ports
        525 lbs  with accessories

      For more information see Swap Tips page

Bellhousing Flange                                                               Picture

         V8's have a different bolt pattern than V6
         V8 pattern is the same 1955 - 1997

Flywheel V8


   153 tooth    12 3/4" diameter

Transmission   700R4

        93 Only, technically called 4L60(not to be confused with 4L60E)
        5 wire connector on the left side

Transmission Dimensions   4L60E/700R4                                 Picture


32 1/2" long    22 1/2" Bellhousing flange to Trans mount
        4L60E does not have a kickdown cable
        13 Wire connector on right side of Trans

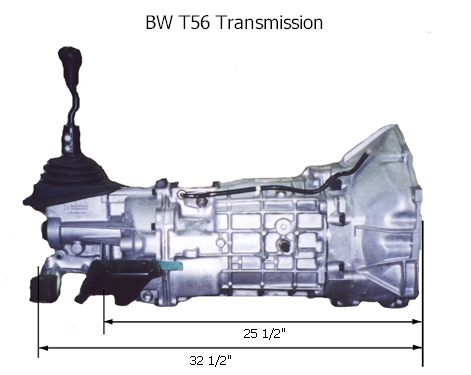

Transmission Dimensions BW T56                                          Picture


32 1/2" long    25 1/2" Bellhousing flange to Trans mount
        Wiring hookups include backup lights, VSS, CAGS, and
           Reverse Lockout (none of the wiring hookups are necessary
                                    for proper transmission operation)
        Shifter is located on the Tailshaft 29" back from front of
            bellhousing flange

Transmission Gear Ratios


1         2        3         4        5         6

T56        3.36      2.07    1.35    1.00    0.80     0.62    93 Only

T56       2.66     1.78    1.30    1.00   0.74     0.50   94 and later

T5         2.95     1.94    1.34    1.00   0.74

  4L60E    3.06     1.63    1.00    0.70

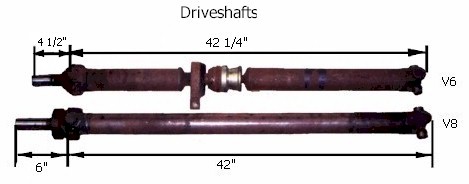

Driveshaft                                                                           Picture

        V8 Shaft is 1 piece    V6 is 2 piece
        yoke is
1/4" shorter for V6 and automatic
        V8
42" long not including yoke
        V8 and V6 yokes are 27 spline  Same as Powerglide, TH350, and T-5

Rear Axle


65 1/2" wide hub to hub with discs on    4 3/4" pattern

11 1/2"  Rotor                 Single Piston Aluminum Caliper
       Ratios available
2.73, 3.23, 3.42

28 Spline Axles

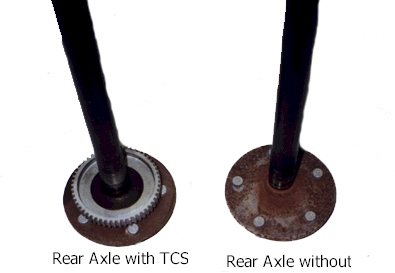

       Cars with TCS have a reluctor ring on each axle
       Cars without TCS have one reluctor ring on the differential   Picture

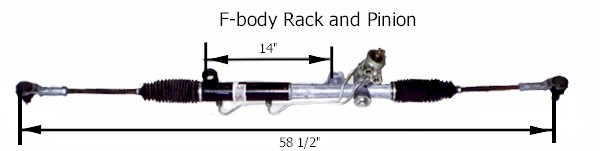

Rack and Pinion                                                                  Picture

       58 1/2"
wide    14" between mounting holes

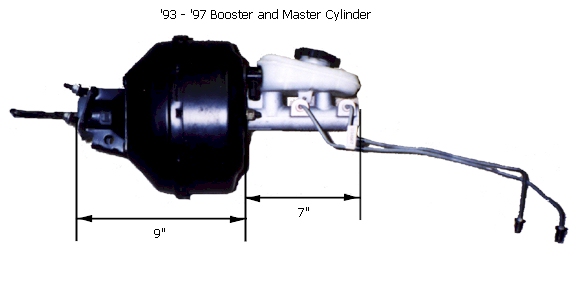

Brake Booster                                                                Picture


9" Diameter
       9" from front to the rear mounting points

Master Cylinder                                                               Picture


7" long    4 1/2" Tall    2 Brake lines on right side

Aluminum Wheels

       Stock
16x8        6 3/4" Backspacing
       SS/WS6
17x9        7"   Backspacing

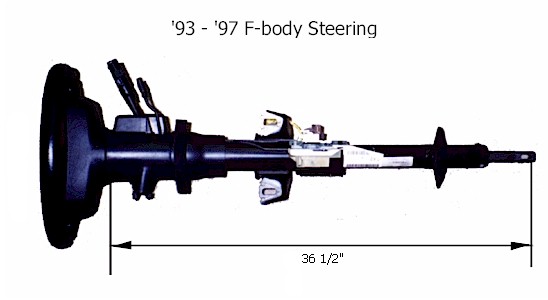

Steering Column                                                               Picture

       Tilt, Cruise, Turn signal, ignition switch

36 1/2" long    3/4" Double D shaft

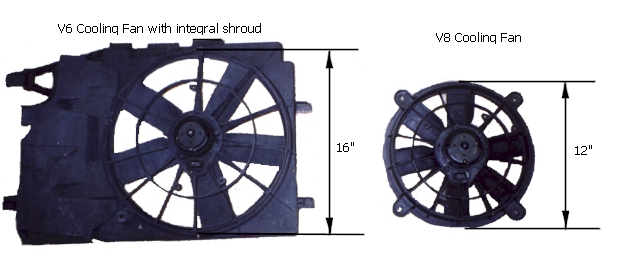

Cooling Fans                                                                     Picture

       V8 cars have dual
12" fans
       V6 cars have a single
16" fan    93 - 96
       '97 and later V6 got the dual fans like the V8



F-body Parts '98 - '02

LS1 - 305hp

       100 lbs. lighter than LT1

26" Bellhousing flange to crank pulley

28" Bellhousing flange to front of water pump

  25" Bottom oil pan to top of manifold

  12.5" Bellhousing flange to center of motor mount

15" Bottom of oil pan to bottom of exhaust ports

   26" Wide to outside of exhaust manifolds

T56 Transmission

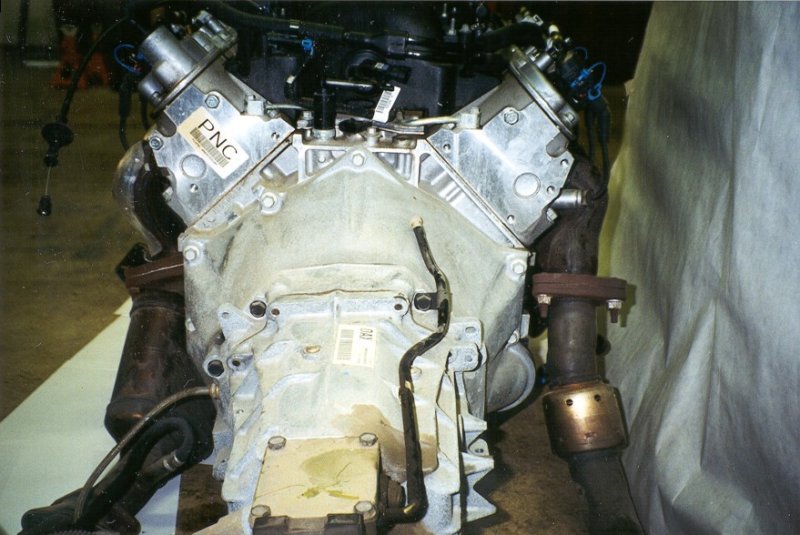

       Different bolt pattern for bellhousing
        5 bolts in same place - 1 moved                              Picture
       Different transmission to bellhousing bolt pattern
       Trans input shaft is longer
       Now uses a hydraulic throwout bearing instead of
            slave cylinder / clutch fork for clutch release
       Flywheel 14"       168 Teeth

4L60E Transmission

       4L60E has removable bellhousing

Brakes

       Front Discs     12"
       Dual Piston aluminum calipers

Corvette Parts '84 - '87

F-Body     Corvette

Transmission    700R4                                                         Picture


30" long     has 4 wire hookup on left side of Trans
        Corvette transmissions differ from all others in that they don't
        have provision for a transmission mount.   The Corvette has a
        large boss cast as part of the tailshaft where the torque arm bolts
        to provide a bridge type support between the Trans and rear end.
        The Corvette tailshaft is 1" shorter than other 700R4's

Rear Axle                                                                             Picture

        All aluminum independent rear with positrac
        drum parking brakes incorporated into rear rotors

11 1/2" rotors        Single piston aluminum calipers
        Fiberglass leaf spring
        Ratios
2.59, 2.79, 3.07
        2 Models    36(
7.875" ring gear)    44(8.5" ring gear)
        Model 36 was used behind automatics
        Model 44 behind manual transmissions

62" wide hub to hub with discs on

37 1/4" between batwing mounting bolts

44 1/2" between trailing arm mounting bracket bolts

Front Suspension                          Suspension Conversion Kits  Picture

        Aluminum control arms and spindles
        Fiberglass leaf spring

11 1/2" rotors    single piston aluminum calipers

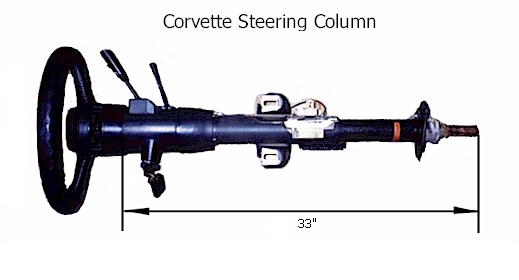

Steering Column                                                                      Picture

        Tilt, Telescoping, Cruise, Turn Signals, Ignition Switch

33" long    19.5mm Double D shaft

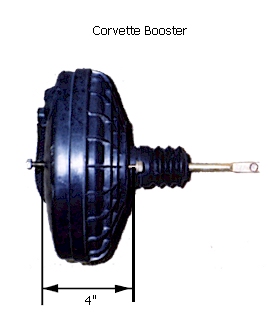

Brake Booster

        4" Thick        10" Diameter                                                 Picture
        Plastic Composition

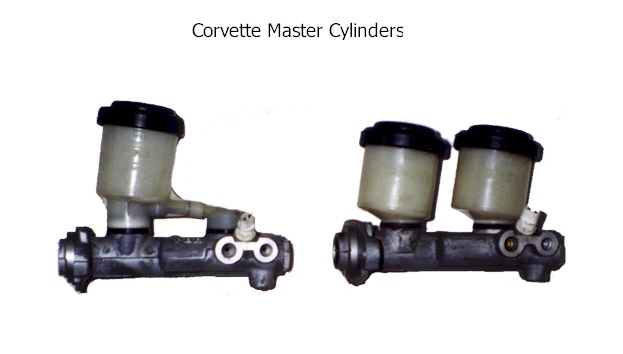

Master Cylinder                                                                         Picture

        Aluminum with one or two reservoirs
        2 Brake lines for front brakes
        1 Line for back brakes
